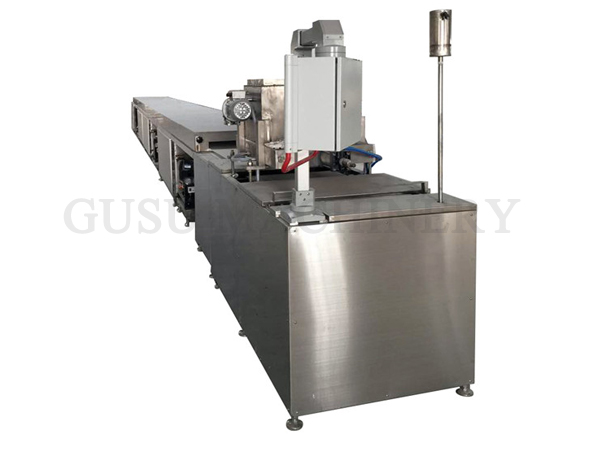

QDJ1200 Chocolate Chip Depositor
Release time:2015-03-31 Reading times: Source: Author:
Abstract:
| Use: | ||
The depositor QDJ1200 is a specified equipment to produce small granule chocolate.The chocolate liquid dripping directly onto the PU conveyor belt and moves into the cooling tunnel for cooling, accor-ding to the roller under the conveyor belt, the chocolate granules fall automatically.The machine has characteristics of accurate control, simple operation, wide range of usage and large production capacity. | ||
| Technical Data: | ||
Conveyor belt width:600-1200mm(Optional) Water drop frequency:12-15 times/min Cooling tunnel working temperature:0-10℃ Refrigeration capacity:16970w/h×2 (evaporation temperature:-5℃,condensation temperature:30℃ Matched total power:22.2kw Compressed air consumption:0.6m³/min(User supply) Outer Dimension:16000×1600×1750mm Weight:2500kg |
